Nimbus Twin 22
VF-NT22-D
Commercial AC EV charger profile with standardised technical specification, compliance indicators, product documentation and installation-relevant data for UK projects.
Snapshot
Regulations and Standards Overview
High-level overview of charger compliance, standards and current UK registrations.
BS7671Yes
EN 61851-1Yes
EV (Smart Charge Point) Regulations 2021Yes
PAS 1899:2022Yes
IET01N/A
G98 V2GN/A
G99 V2GN/A
G100 V2GN/A
G100 Load ManagementYes
Current Registration Overview
Current registration with UK schemes.
OZEV DomesticYes
OZEV CommercialYes
ENA Connect Direct AC EVABCDE/01234
ENA Connect Direct Power GenerationN/A
Charger Specification
Headline Specification
All charger data should be checked against the latest manufacturer documentation before specification or installation.
Product overview
| Manufacturer | VoltForge Systems Ltd |
|---|---|
| Model | Nimbus Twin 22 |
| Part number | VF-NT22-D |
| Form factor | Surface mount |
| Application | Commercial |
| Primary interface | Touchscreen |
| MID | Yes |
| Eichrecht | - |
| Charging type | AC Mode 3 |
| Number of outlets | 2 |
| Types of outlets | Type 2 socket |
| ISO 15118 | Yes |
| Warranty | 3 years |
| Warranty extension | Up to 5 years |
| MSRP | Not stated |
Electrical specification
| Maximum charging rate | 7.4 kW single-phase / 22 kW three-phase |
|---|---|
| Total power output | 44 kW |
| Supply configuration | Single-phase or three-phase |
| Incoming feed | Single Feed |
| Power Daisy Chaining | Supported |
| Earthing arrangements | TT / TN-S / TN-C-S |
| Static load management | Supported |
| Dynamic load management | Supported |
| Native solar support | - |
| V2G | - |
| ISO 15118 | Yes |
Protection and safety
| Built-in overcurrent protection | C32 3P+N MCB per outlet |
|---|---|
| Built-in RCD | Type A |
| Built-in RCD standard | EN 60947-2 |
| RCD reset | Semi-auto |
| RDC-DD / 6mA DC detection (EN 62955) | Yes |
| IP rating | IP54 |
| IK rating | IK10 |
PEN-fault protection
| PEN-fault detection | No |
|---|---|
| Internal PE breakage | N/A |
| Fault reset | N/A |
| IET01 conformant | N/A |
Networking
| Ethernet | WLAN | Bluetooth | Modem |
|---|---|---|---|
| ✓ | ✓ | - | O |
Ethernet✓
WLAN✓
Bluetooth-
ModemO
Network Sharing
| Ethernet Daisy Chain | Ethernet to WLAN | WLAN to Ethernet | Modem to Ethernet | Modem to WLAN |
|---|---|---|---|---|
| ✓ | ✓ | ✓ | O | O |
Ethernet Daisy Chain✓
Ethernet to WLAN✓
WLAN to Ethernet✓
Modem to EthernetO
Modem to WLANO
EV Charging Management Systems (Backend) support
| Third-party platform support | OCPP 1.6 | OCPP 2.0.1 | OCPP 2.1 |
|---|---|---|---|
| ✓ | ✓ | ✓ | - |
Third-party platform support✓
OCPP 1.6✓
OCPP 2.0.1✓
OCPP 2.1-
Authorisation
| Plug & Charge | Autocharge | Integrated Payment Terminal | Dynamic QR | RFID | NFC | Key Operated |
|---|---|---|---|---|---|---|
| ✓ | ✓ | - | ✓ | ✓ | - | - |
Plug & Charge✓
Autocharge✓
Integrated Payment Terminal-
Dynamic QR✓
RFID✓
NFC-
Key Operated-
Integrations
| Kraken | ModBus TCP/IP | ModBus RTU | Smart Integrations* |
|---|---|---|---|
| - | ✓ | - | ✓ |
Kraken-
ModBus TCP/IP✓
ModBus RTU-
Smart Integrations*✓
* The range of Smart Integrations depends on the backend service used.
Compliance data
| CE marking | N/A |
|---|---|
| CE issued by | N/A |
| UKCA marking | Yes |
| UKCA issued by | Manufacturer |
| External type testing for EN 61851-1 | BSI |
| CB certification | N/A |
| BS7671 | Yes |
| PAS 1899:2022 | Yes |
| IET01 | N/A |
| G98 V2G | N/A |
| G99 V2G | N/A |
| G100 V2G | N/A |
| G100 load management | Yes |
| OZEV Domestic | Yes |
| OZEV Commercial | Yes |
| ENA Connect Direct AC EV | ABCDE/01234 |
| ENA Connect Direct Power Generation | N/A |

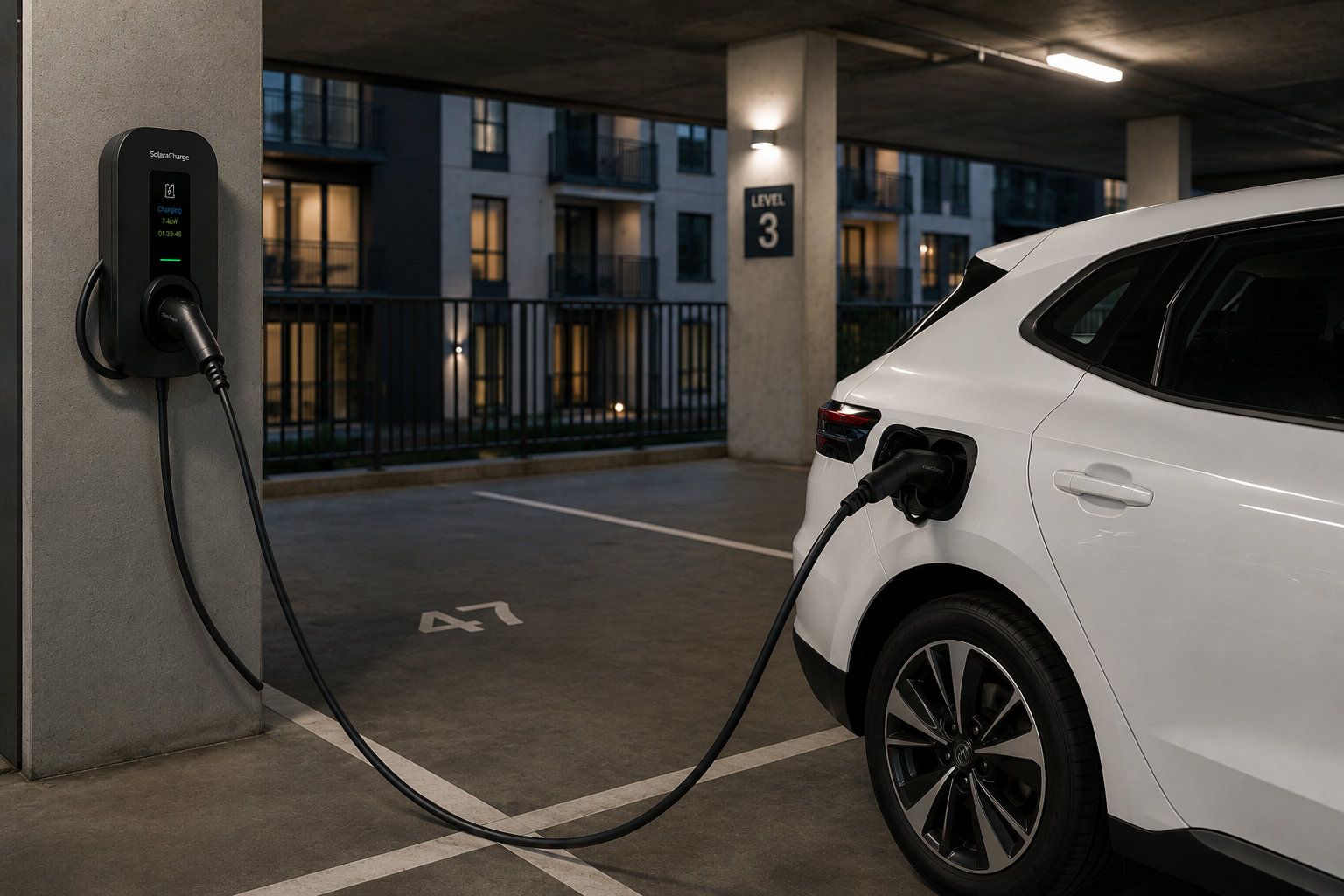

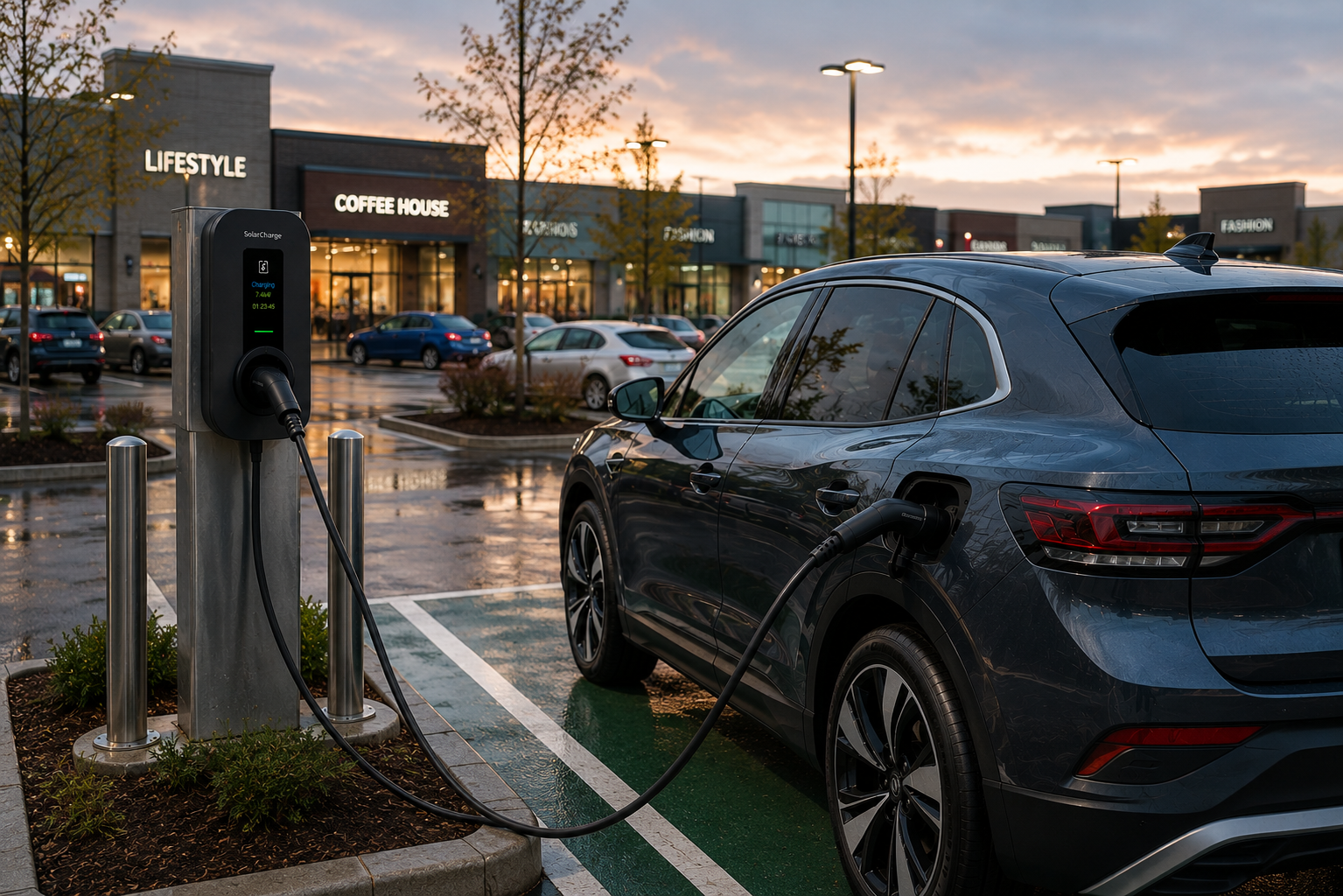

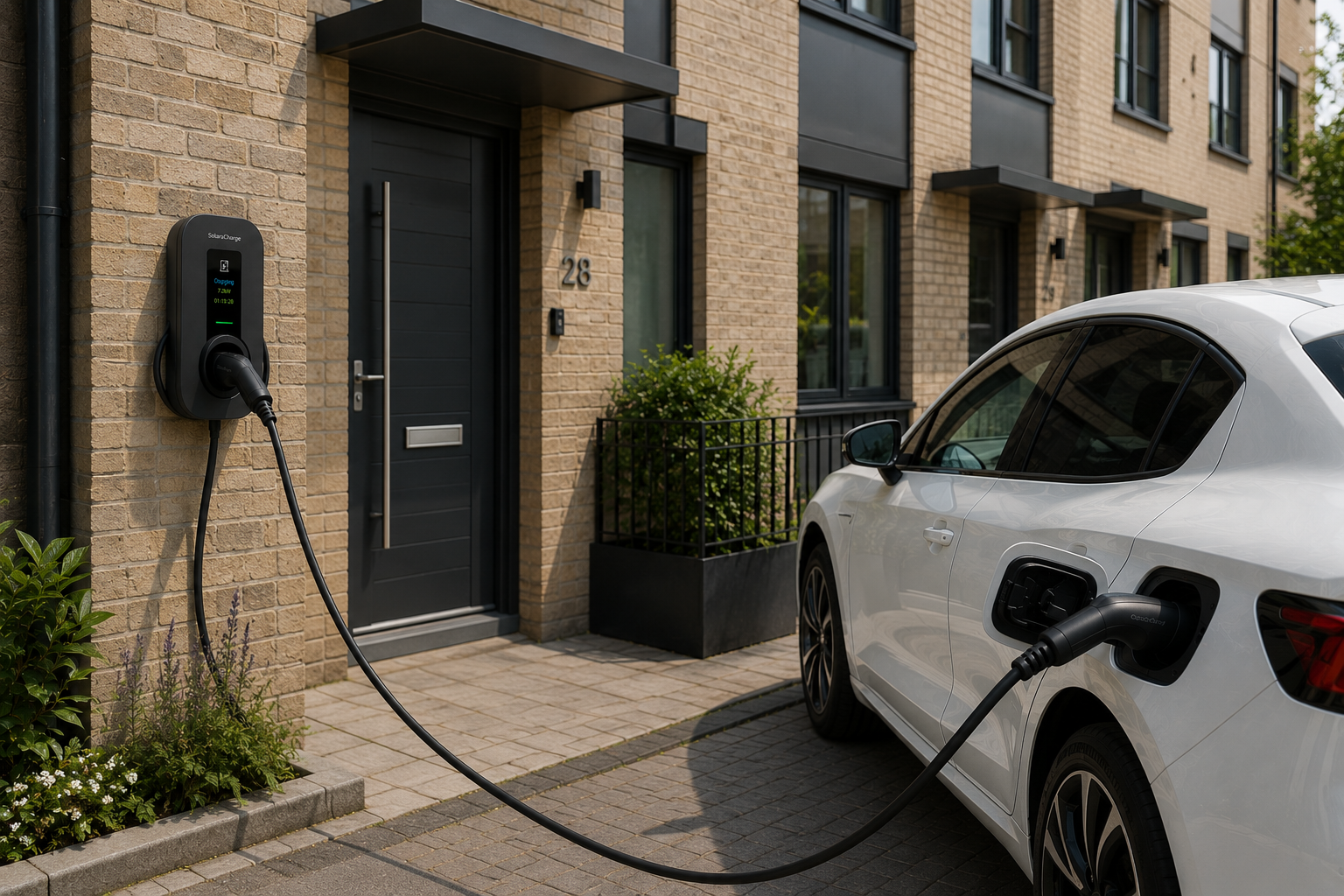

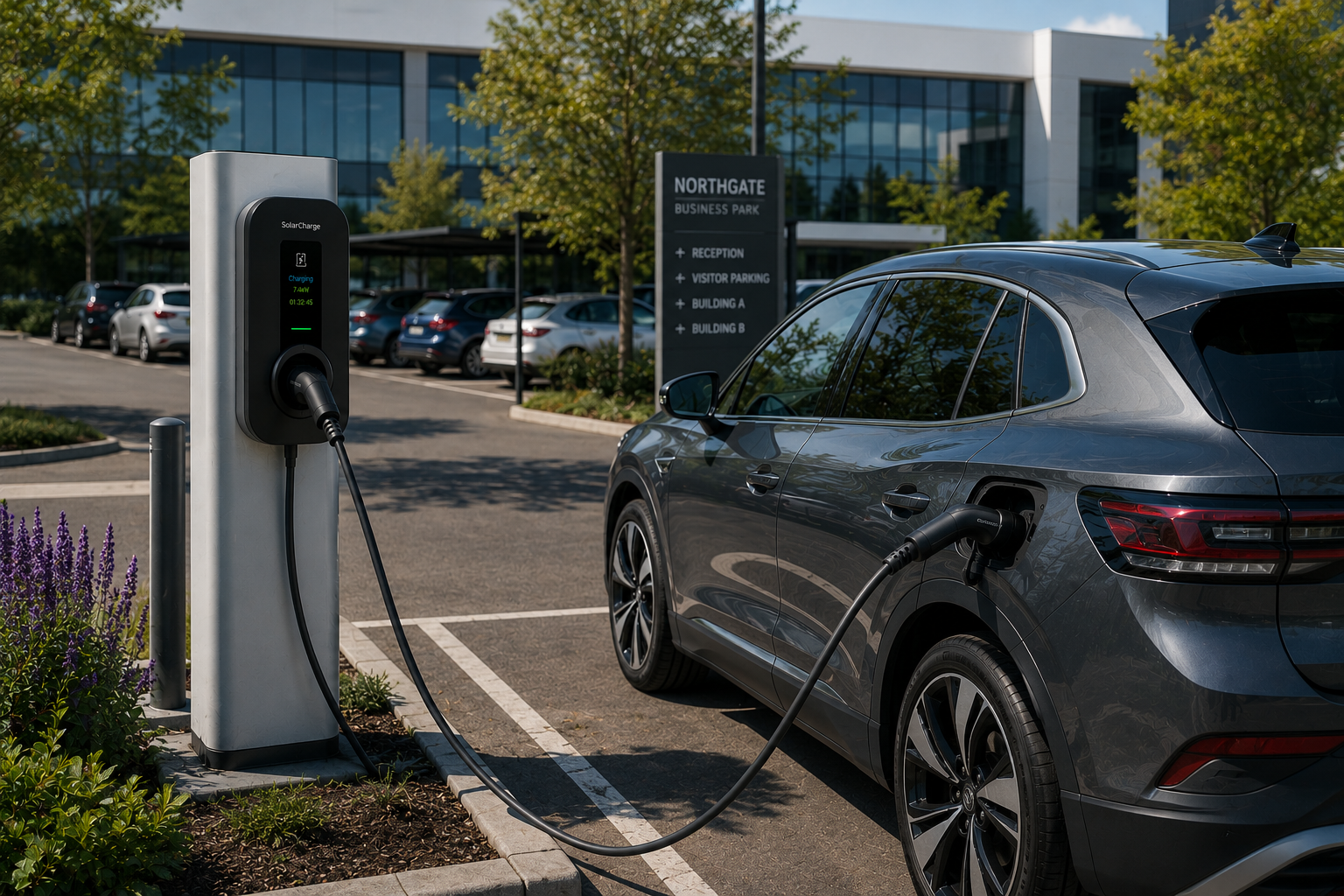

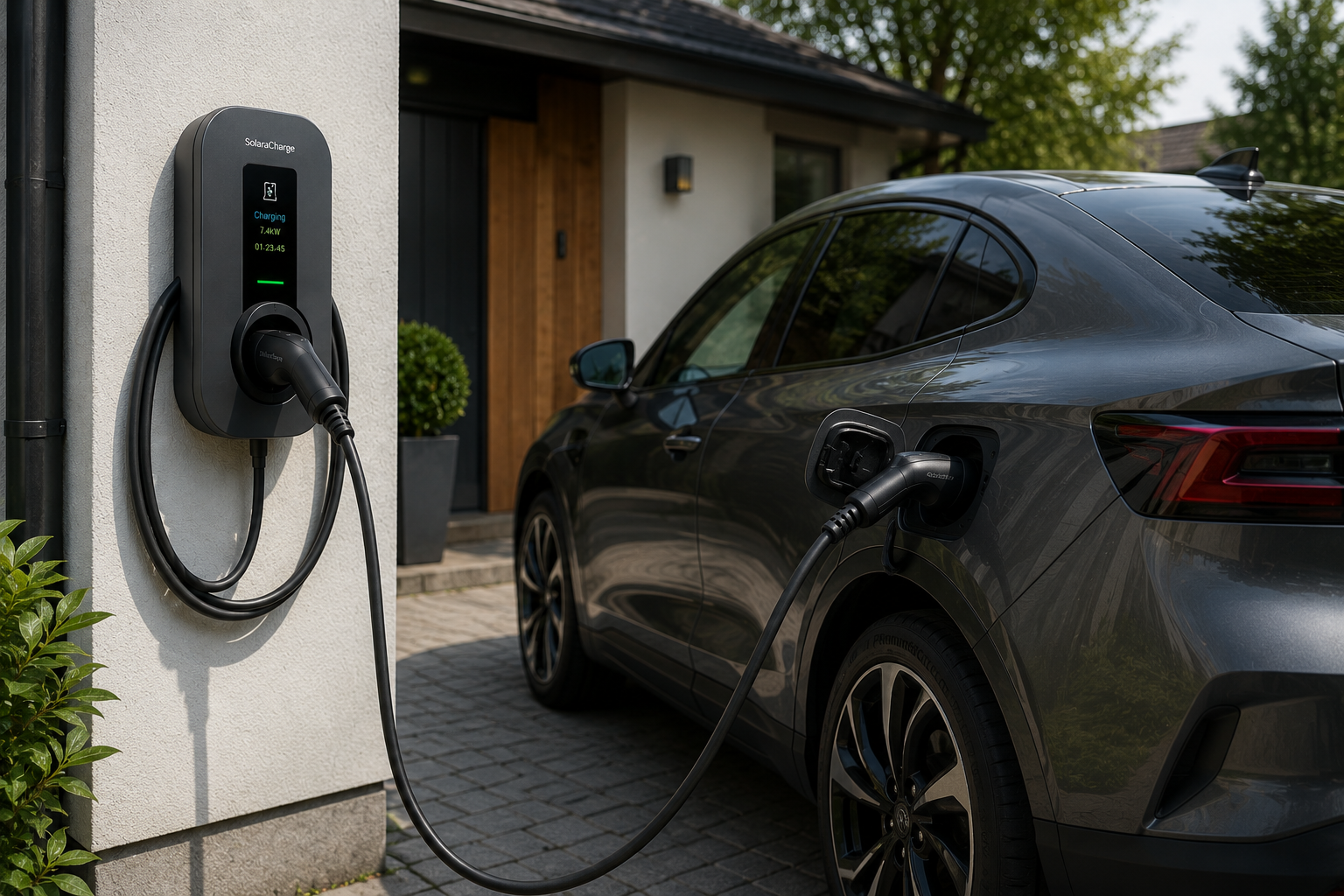

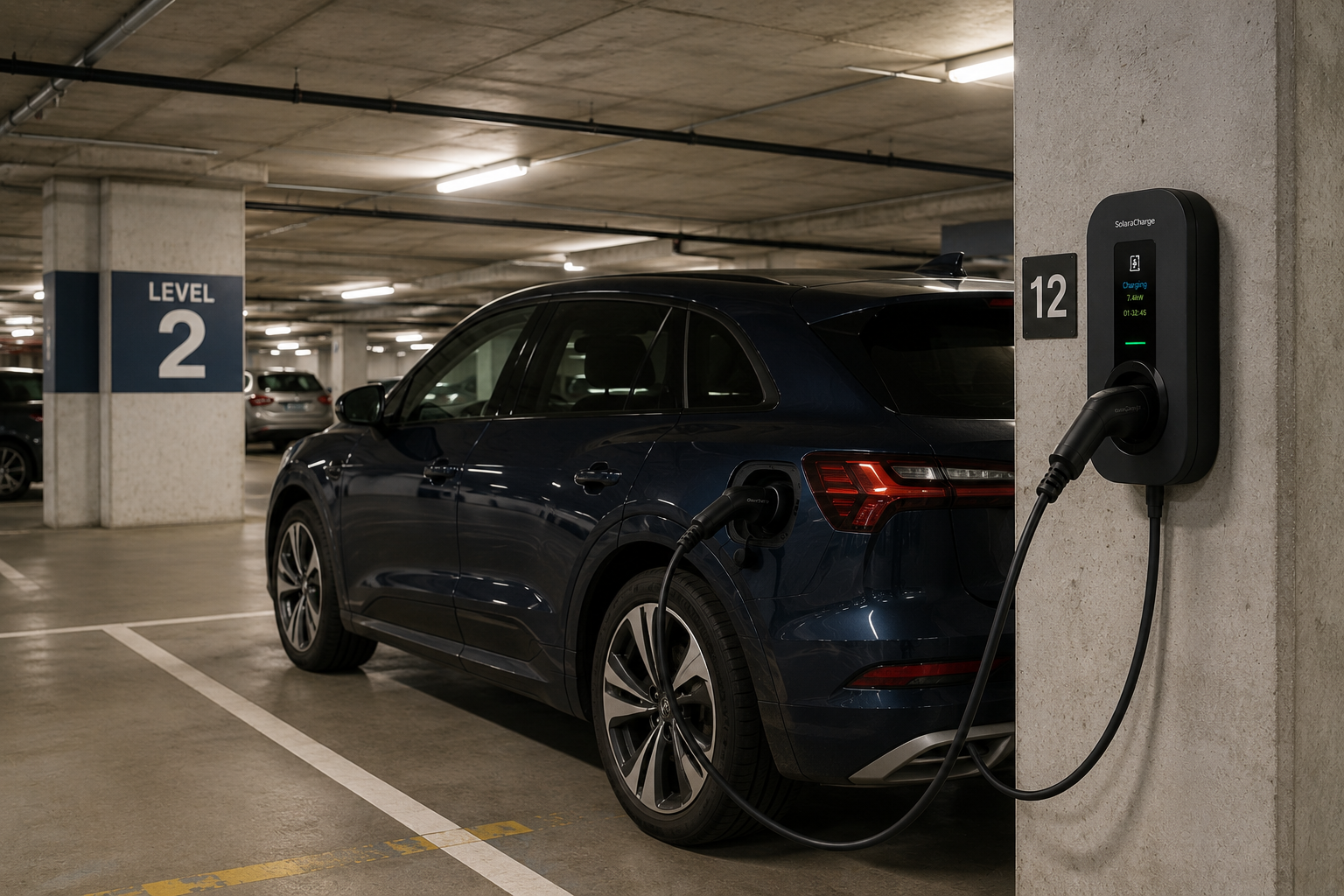

Product images
Note: Specifications, standards references and compliance information are provided for general reference only and should always be independently verified against the latest manufacturer documentation before specification, procurement or installation.
